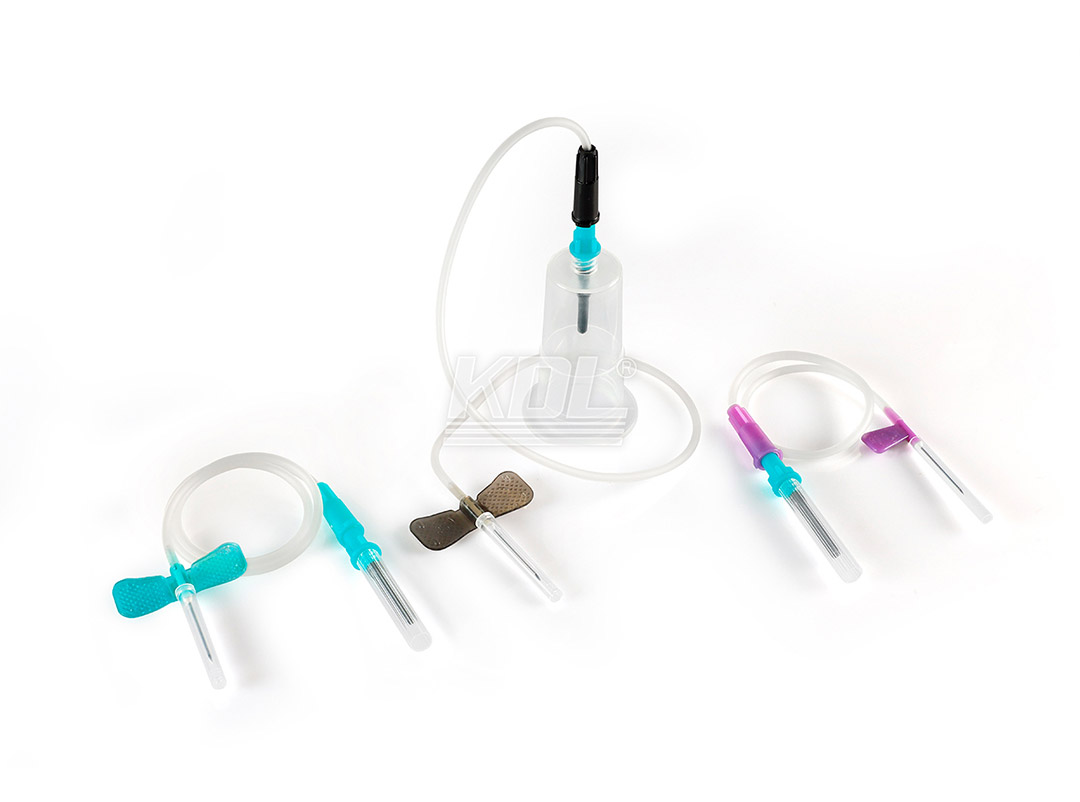

Wing Type Blood-Collecting Needle (Single Wing, Double Wing)
- The design of needle tip is exquisite,sharp,fast,less pain and less tissue damage.
- Natural rubber or isoprene rubber can be used for the sealing rubber sleeve.Patients with allergy to latex can use blood collection needles with isoprene rubber sealing sleeve without latex ingredients,which can effectively prevent latex allergy.
- Large inner diameter and high flow of needle tube.
- Transparent tube is good for observation of venous blood return.
- The double (single) concave convex combination makes the puncture operation more secure and more reliable.
- Customized and exquisite self-sealing:when replacing the vacuum collection tube in use,the compressed rubber sleeve will rebound naturally,achieve the sealing effect,so that the blood will not flow out,protecting the medical staff from the accidental injury of the contaminated needle tip,avoiding the spread of blood borne diseases,and creating a safer working environment for the medical staff.
- Humanization consideration:single and double wing design,meet different clinical operation requirements,the wing is soft and easy to fix.The wing’s colors identify specification,which is easy to distinguish and use.
- Model specifications:see the table below.
Single wing scalp vein type -blood-collecting needle
OD | Gauge | Color Code | General Specifications | QTY |
---|---|---|---|---|
0.55 | 24G | Medium Purple | 0.55×20mm | 2000Piece/carton |
0.6 | 23G | Dark Blue | 0.6×25mm | 2000Piece/carton |
0.7 | 22G | Black | 0.7×25mm | 2000Piece/carton |
0.8 | 21G | Dark Green | 0.8×28mm | 2000Piece/carton |
Double wing scalp vein type collecting needle
OD | Gauge | Color Code | General Specifications | QTY |
---|---|---|---|---|
0.5 | 25G | Orange | 25G×3/4" | 2000Piece/ carton |
0.6 | 23G | Dark Blue | 23G×3/4" | 2000Piece/ carton |
0.7 | 22G | Black | 22G×3/4" | 2000Piece/ carton |
0.8 | 21G | Dark Green | 21G×3/4" | 2000Piece/ carton |
Product Features
Intended use | This product is used for clinical collection of blood samples. Sterilized by ethylene oxide, the product is sterile and pyrogen-free. |
Structure and composition | The product consists of a blood collection syringe, a connecting seat, a protective sleeve, an upper cap, and a lower cap. |
Main materials | Medical ABS,Medical Polypropylene PP,SUS304 Stainless Steel Tube,Medical Silicone Oil. |
Shelf life | 5 years |
Certification and quality assurance | Manufactured in full compliance with IS013485 quality systems. |
