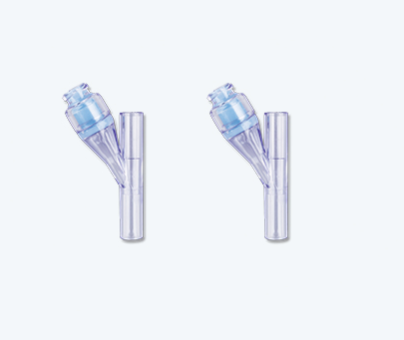

Needle Free Connectors(Y site)
- The INT® needle free connectors (Y site) is designed as puncture-free port during injection or aspiration.
- 4.0mm ID ports.
- Priming Volume:0.19ml.
- Flow Rate:360 ml/min.
Model
| NFC06 |
Specification
The INT® needle free connectors is designed as puncture-free port during injection or aspiration. The silicone valve allows multiple usage and give infection control.
♦ The luer on this needle free device is compatible to all standard luer syringes and connectors
♦ Low priming volume and high flow rates
♦ Activation: more than 200 times
♦ Back pressure: 45 psi
♦ Positive pressure needle free connectors provide forward flushing when a syringe or IV line disconnecting from the cannula to avoid clotting, also eliminates the needs of manual flushing.
Packing
| 46*33*33 CM 4000 pcs/case |
Needle Free Connectors Specifications
| Configuration | Part Number | Priming Volume | Flow Rate @ 1 psi |
| Male-Female | NFC01 | 0.09m | 550 ml/min |
| Female-Tube 2.4mm ID port | NFC02 | 0.12m | 380 ml/min |
| Female-Tube 2.4mm ID port | NFC02 | 0.12m | 380 ml/min |
| Female-Tube 4.0mm ID port | NFC05 | 0.24ml | 510 ml/min |
| Y site 4.0mm ID ports | NFC06 | 0.19ml | 360 ml/min |
Needle Free Connectors (Positive Pressure) Specifications
| Configuration | Part Number | Flow Rate @ 1 psi |
| Male-Female | NFC08c | ≥ 100 ml/min |
| Female-Tube 2.4mm ID port | NFC08b | ≥ 100 ml/min |
| Y site 2.4mm ID ports | NFC08a | ≥ 100 ml/min |
