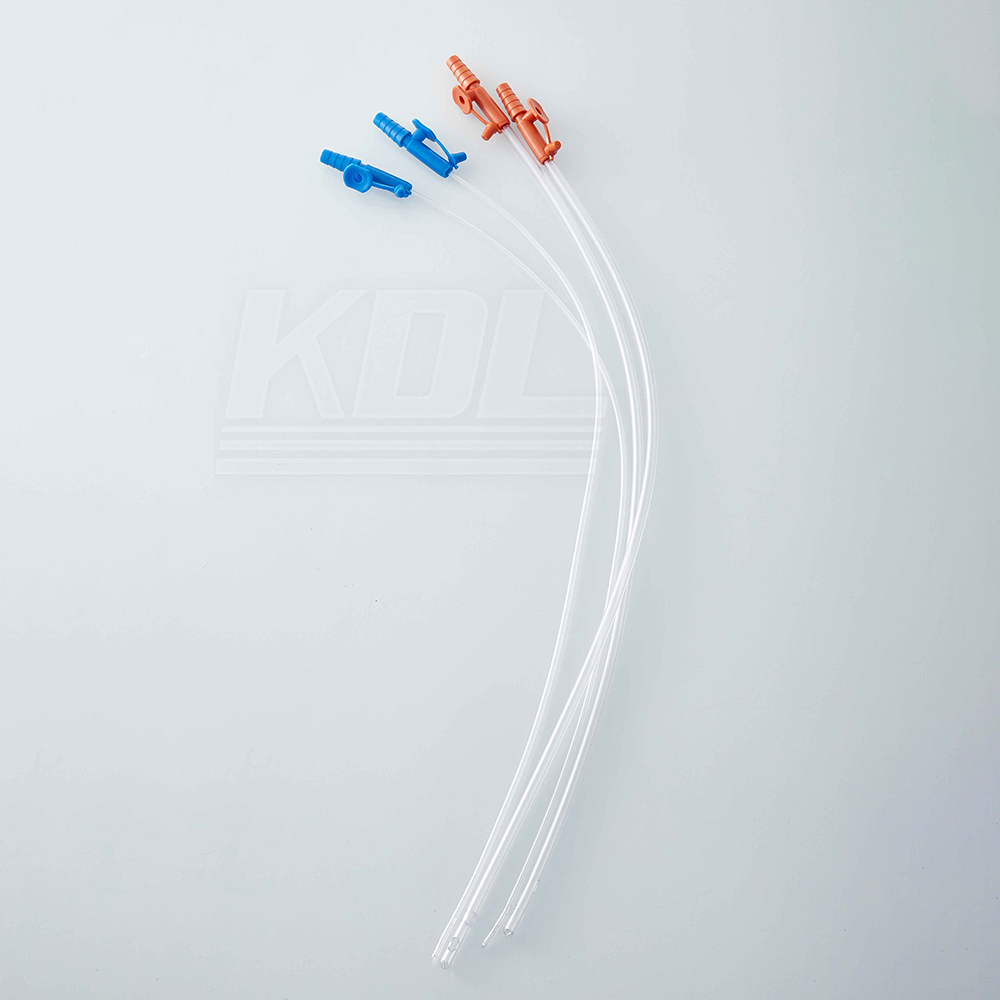

KDL Suction Catheter/ Suction Connecting Tube
- The suction catheter/suction connecting tube is an essential medical device use in healthcare to remove secretions, fluids, and other debris from the airways of patients.

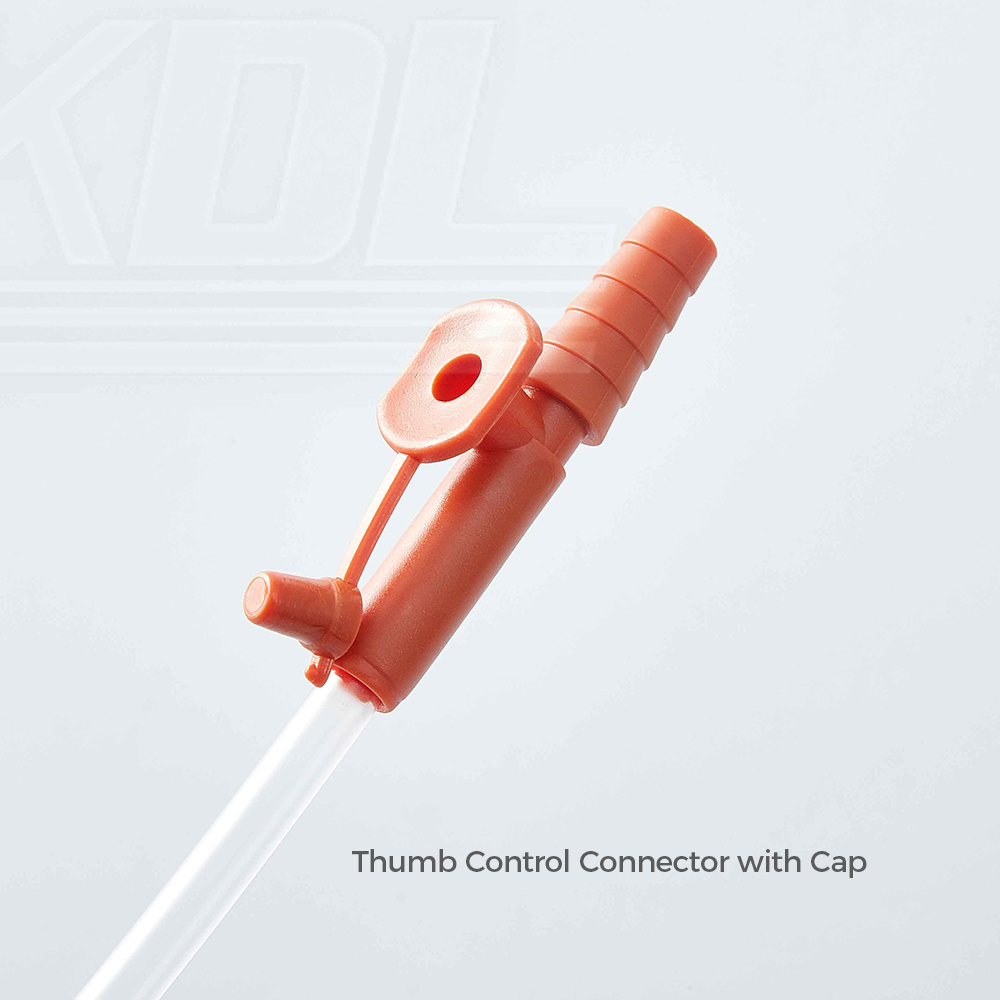

- Fingertip control and thumb control are use to regulate the vacuum pressure.
- Attaining maximum suction pressure during use.
- Extra smooth low friction surface tubing facilitates easy intubation.This prevents any irritation to the tracheal mucosa & adds to patient comfort.
Product Features
| Intended Use | This product is suitable for suctioning sputum out of the patient's lungs by a suction machine connected to a suction tube. |
| Structure and Composition | The product consists of a vacuum valve fitting,a catheter and a connector.The product is ethylene oxide sterilized for single use. |

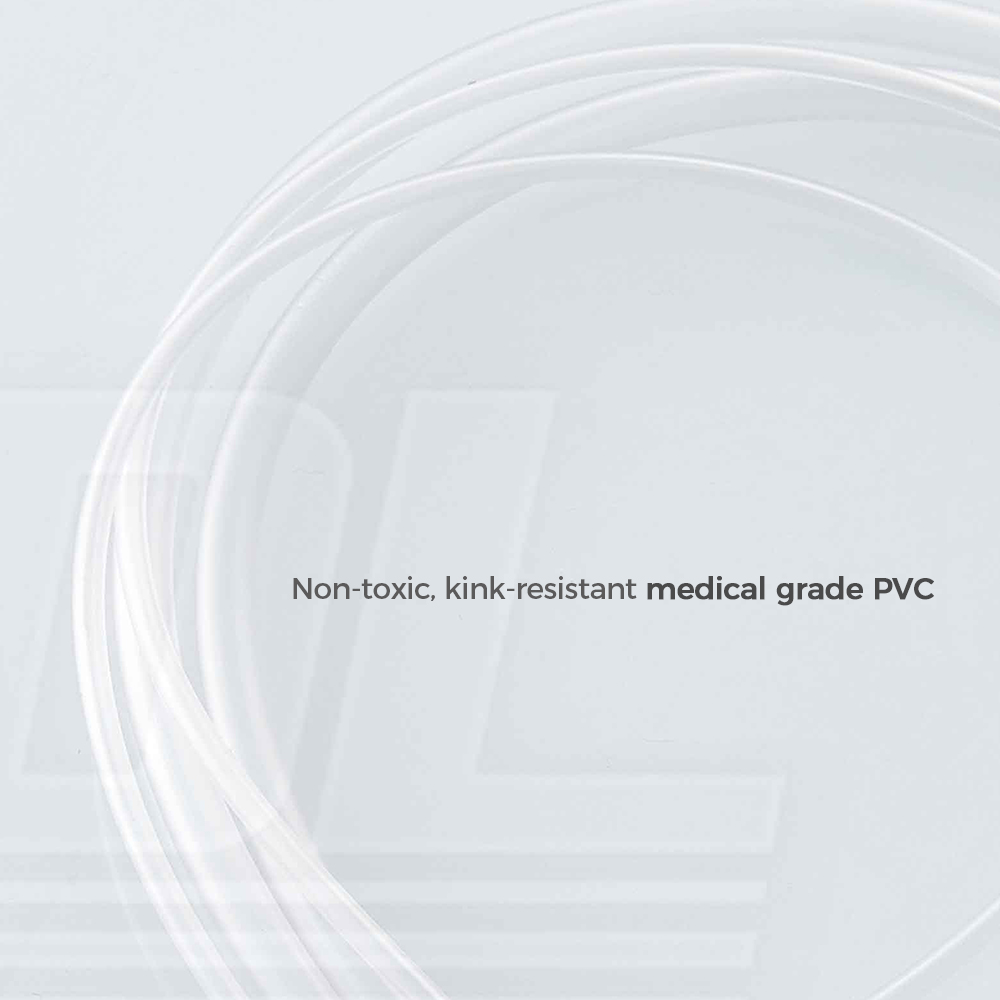

| Main Materials | Medical Polyvinyl Chloride PVC,Medical Polystyrene PS |
| Shelf Life | 5 years |
| Certification and Quality Assurance | Manufactured in full compliance with IS013485 quality systems. |
Specification

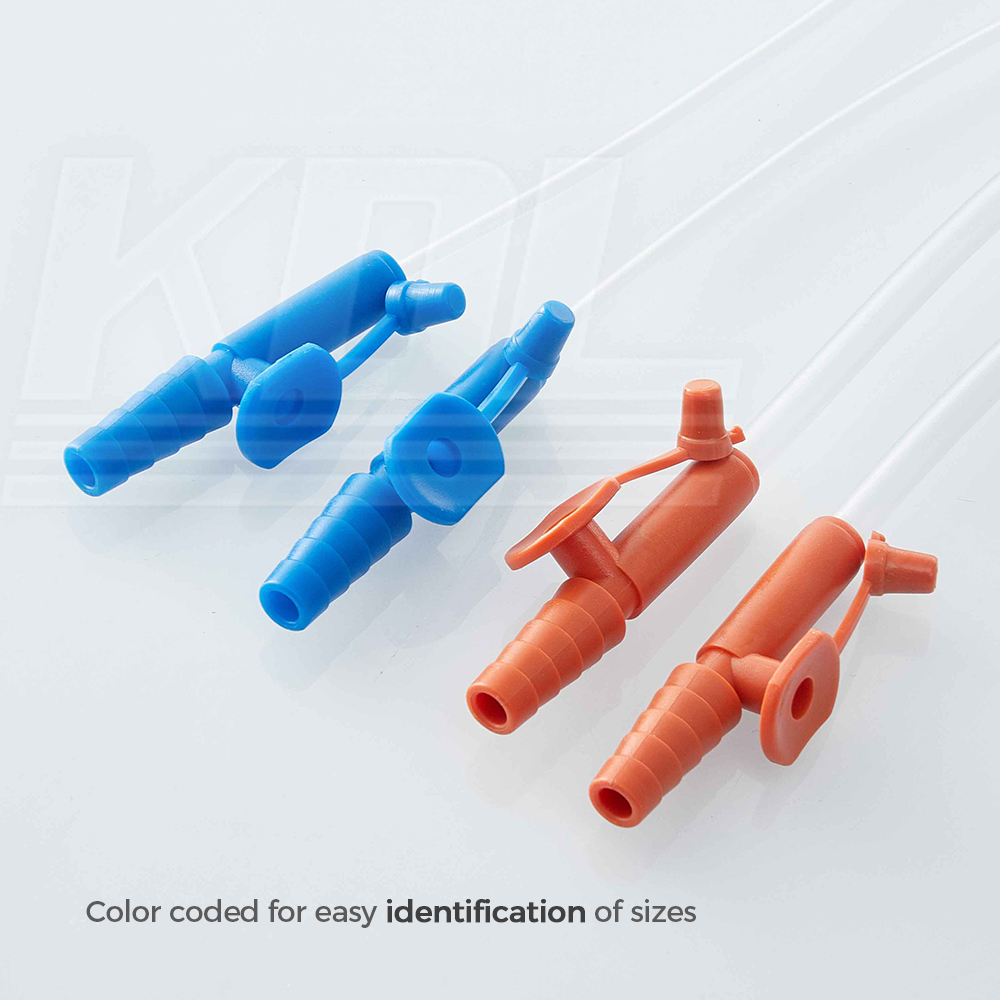

| Tube O.D./Fr | Tube length/mm | Connector Color | Terminal orifice position | Scale printing | Suggested patient population |
| 5 | 100mm - 600mm |
Grey | Opposite/Ectopic | Printed/Unprinted | Child 1-6 years |
| 6 | 100mm - 600mm |
Light green | Opposite/Ectopic | Printed/Unprinted | Child 1-6 years |
| 7 | 100mm - 600mm | Ivory | Opposite/Ectopic | Printed/Unprinted | Child 1-6 years |
| 8 | 100mm - 600mm | Light blue | Opposite/Ectopic | Printed/Unprinted | Child＞6 years |
| 10 | 100mm - 600mm |
Black | Opposite/Ectopic | Printed/Unprinted | Child＞6 years |
| 12 | 100mm - 600mm | White | Opposite/Ectopic | Printed/Unprinted | Adult, Geriatric |
| 14 | 100mm - 600mm | Green | Opposite/Ectopic |
Printed/Unprinted | Adult, Geriatric |
| 16 | 100mm - 600mm | Orange | Opposite/Ectopic |
Printed/Unprinted | Adult, Geriatric |
| 18 | 100mm - 600mm | Red | Opposite/Ectopic | Printed/Unprinted | Adult, Geriatri |
