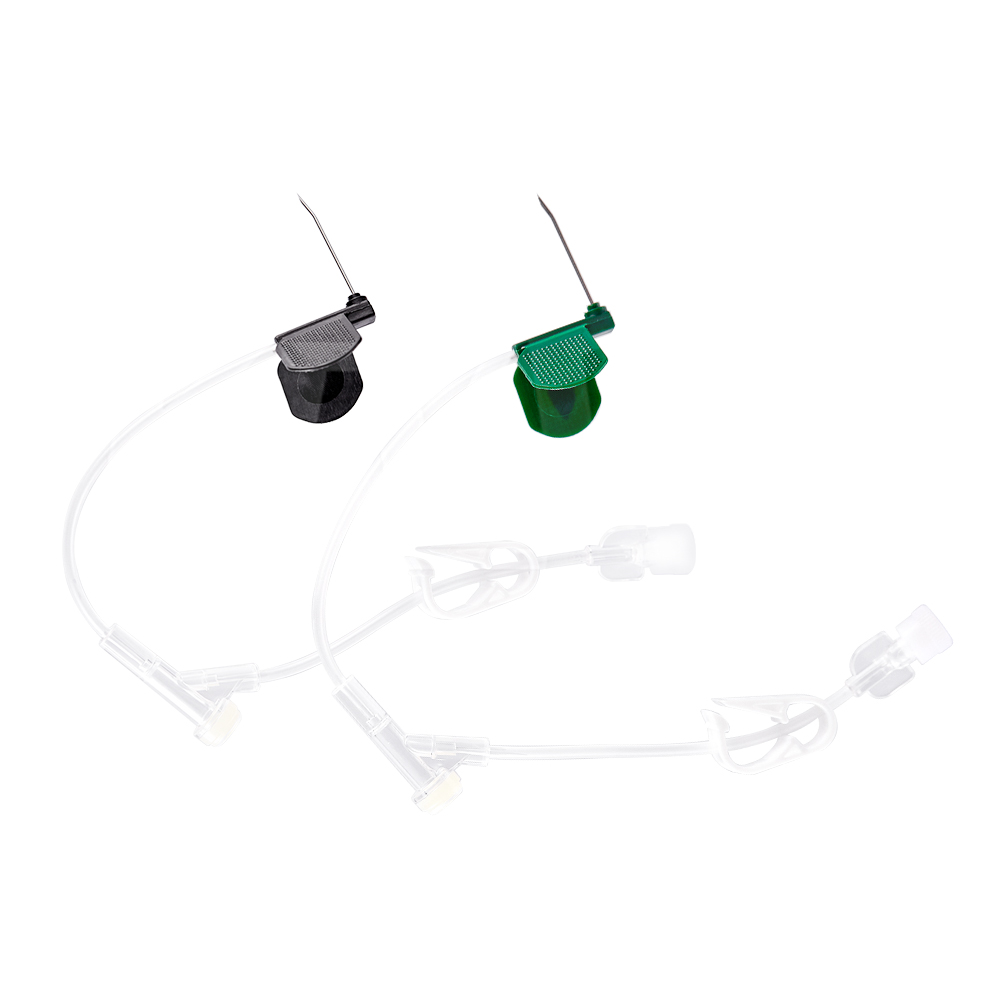

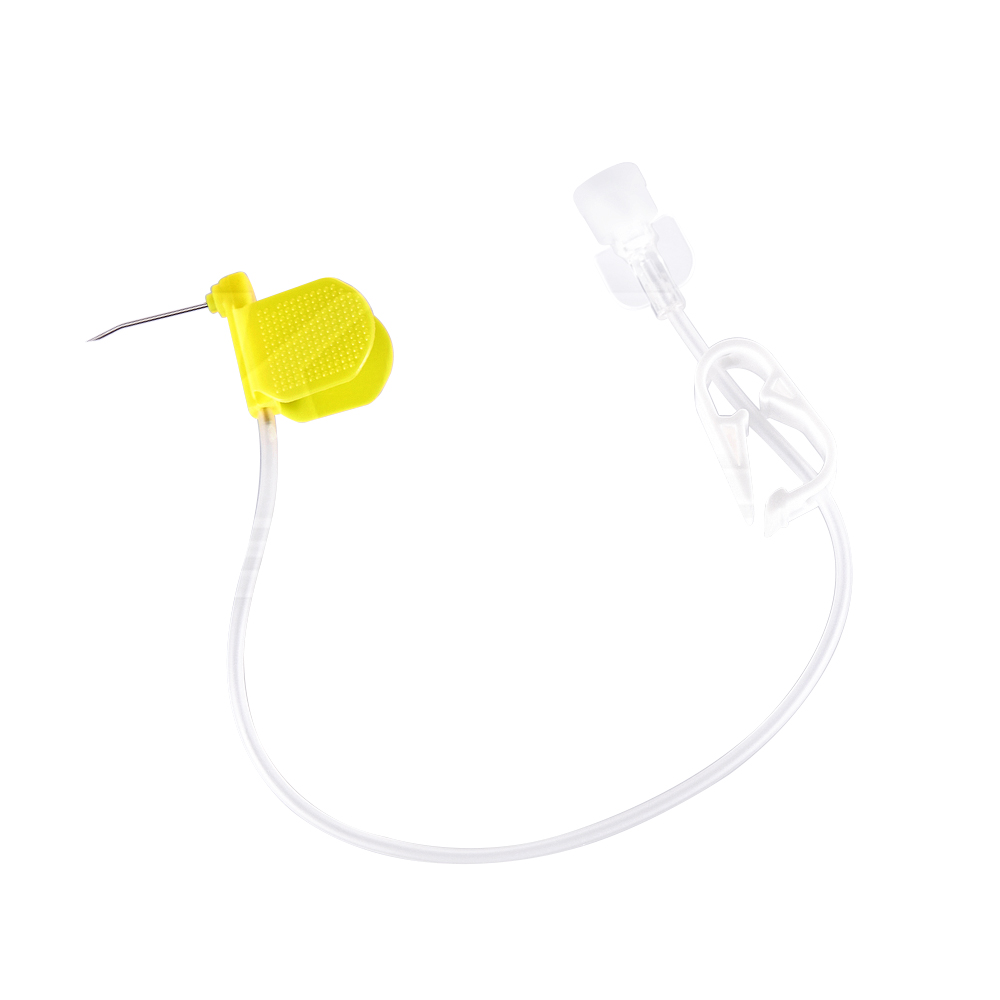

Safety IV Catheter Needle
- The IV Catheter Needle by KDL is a high-quality medical device designed for precise and efficient intravenous access.

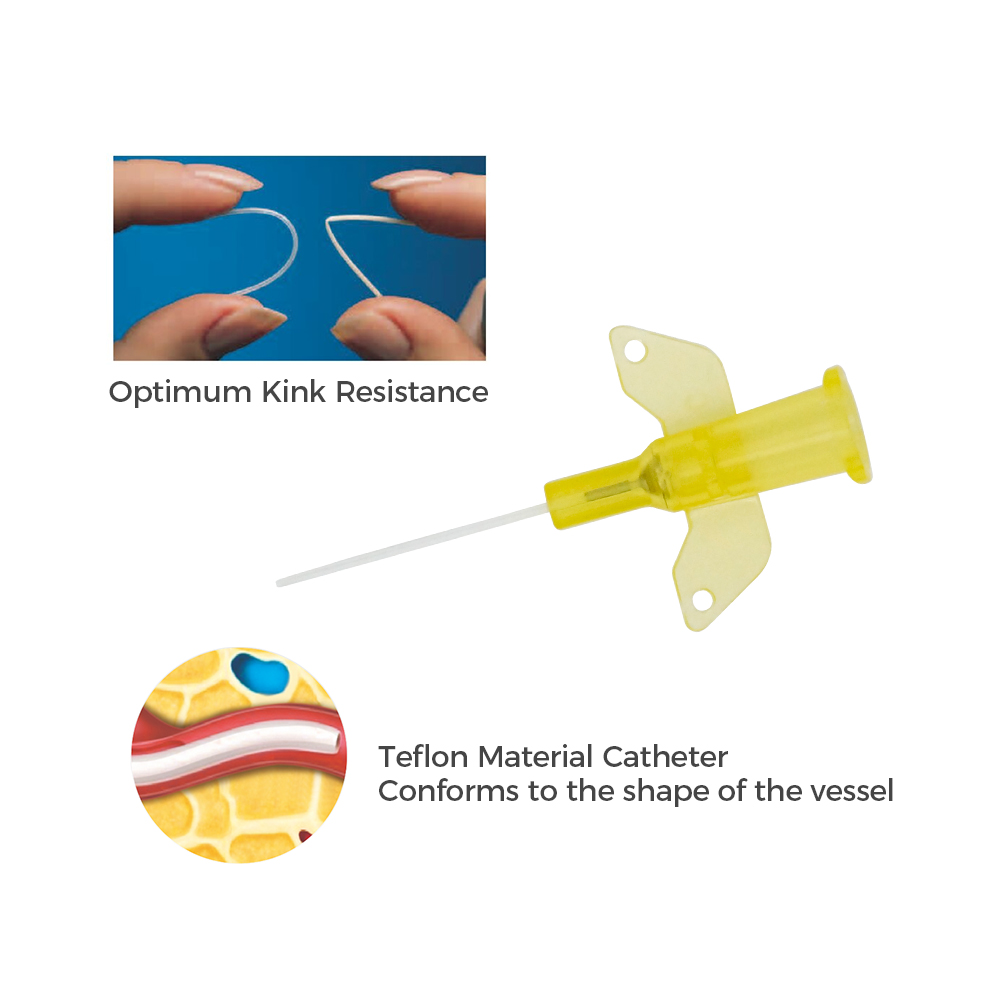

- Teflon catheter material is biocompatible minimizing risk of irritation and infection while catheter is indwelling.
- Double wings are specially treated to provide easy & secure fixation with the patient skin.

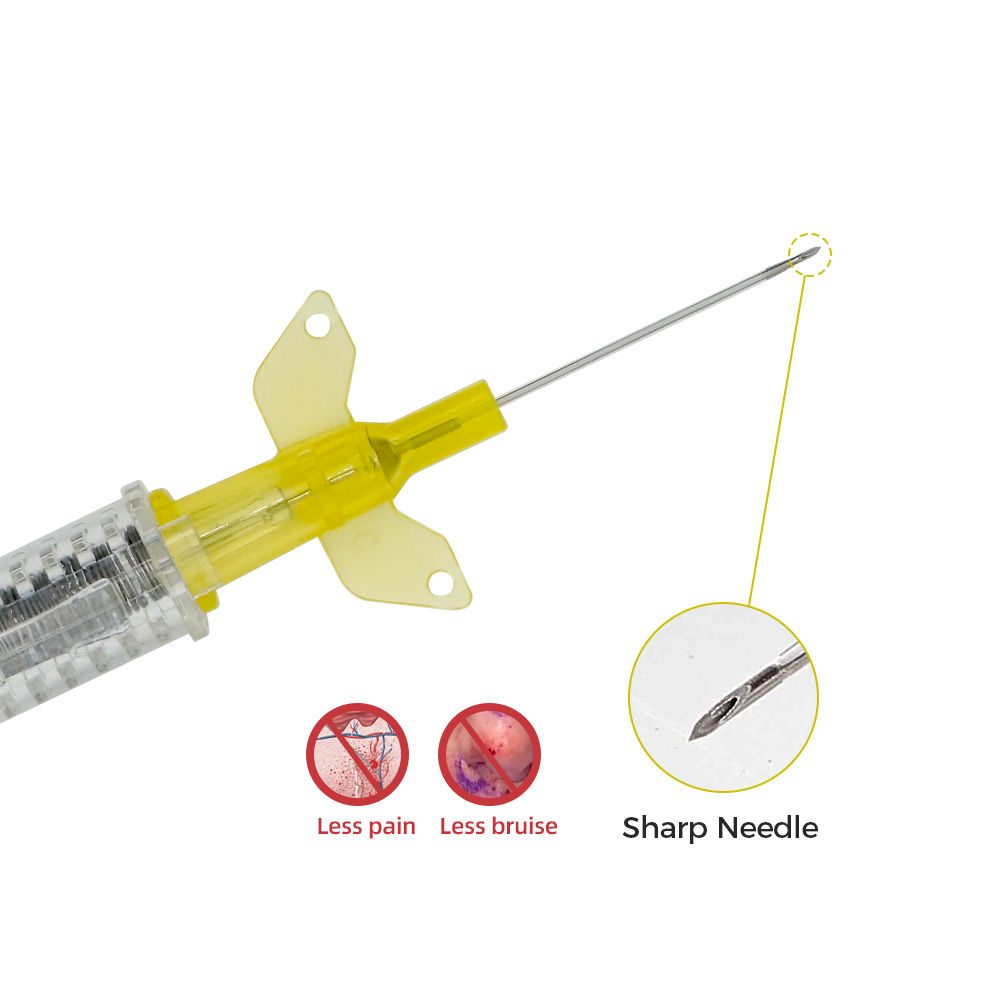

- Back cut needle reduces penetration force and optimizes insertion performance.

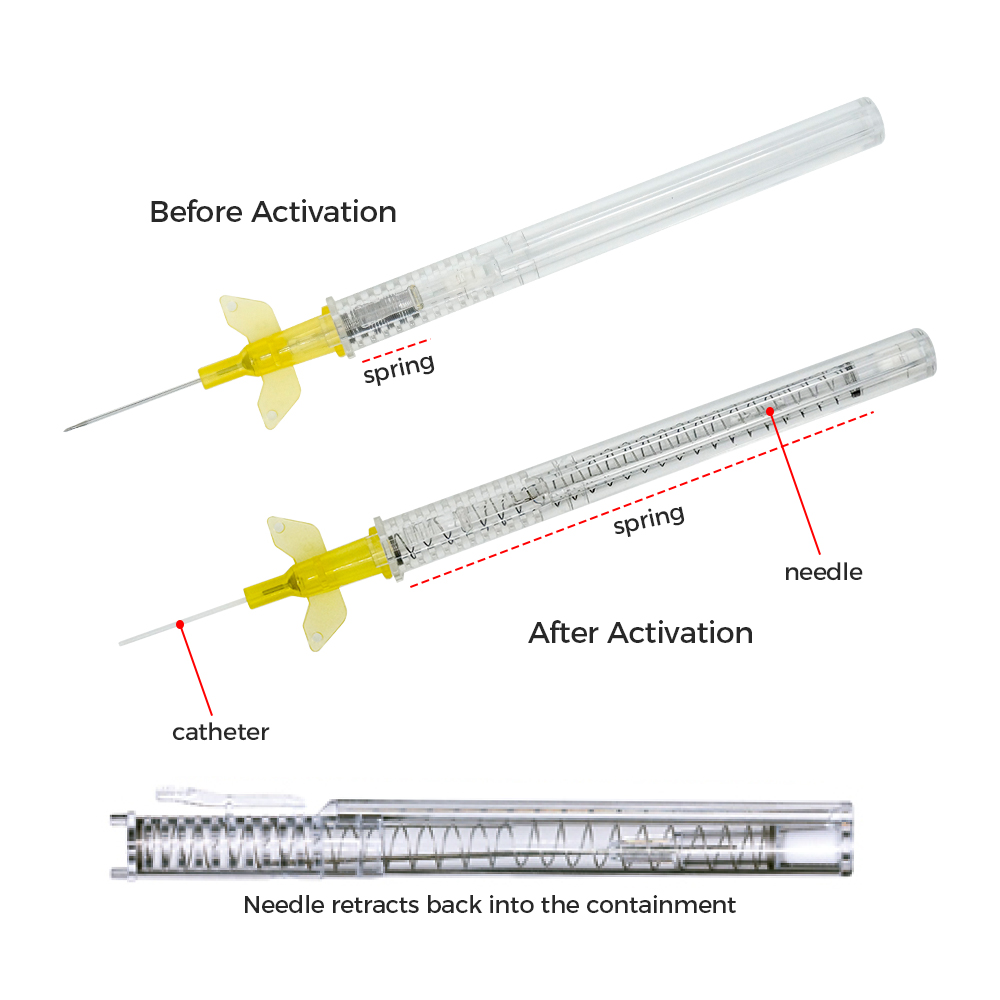

- The unique push-button shielding mechanism releases the spring and allows the needle and flash chamber to quickly retract into the safety barrel.
Specification
Gauge | Catheter Length (mm) | Outer Diameter (mm) | Flow Rate(ml/min) | Color Code |
14G | 45 | 2 | 208 | Orange |
16G | 45 | 1.8 | 172 | Grey |
17G | 45 | 1.5 | 120 | White |
18G | 32 | 1.2 | 90 | Green |
20G | 32 | 1 | 58 | Pink |
22G | 25 | 0.9 | 36 | Blue |
24G | 19 | 0.7 | 22 | Yellow |
