Disposable I.V Catheter / Butterfly Intravenous Catheter Peripheral Venous Catheter

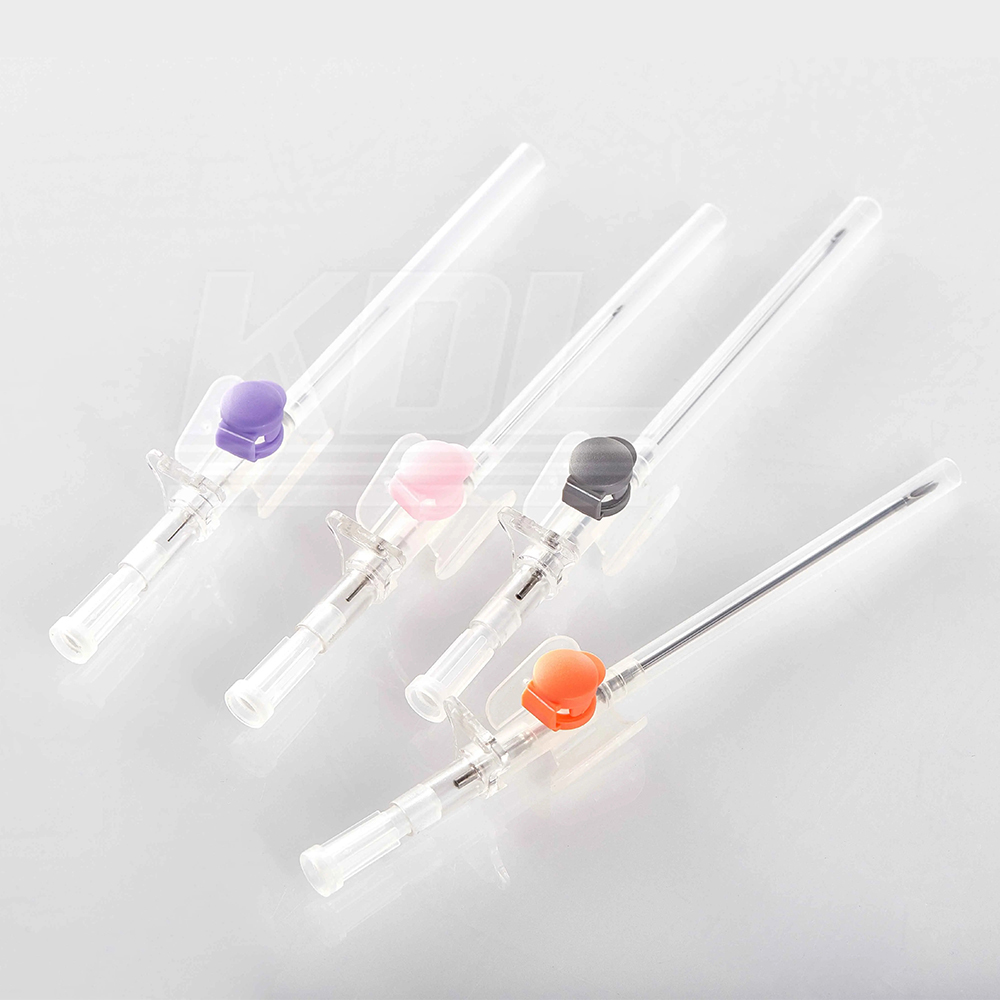

- The color of catheter base or medicated protective cap identified by the specification is easy to distinguish and use.
- The specification of the catheter base identified by the colors is easy to distinguish and use.

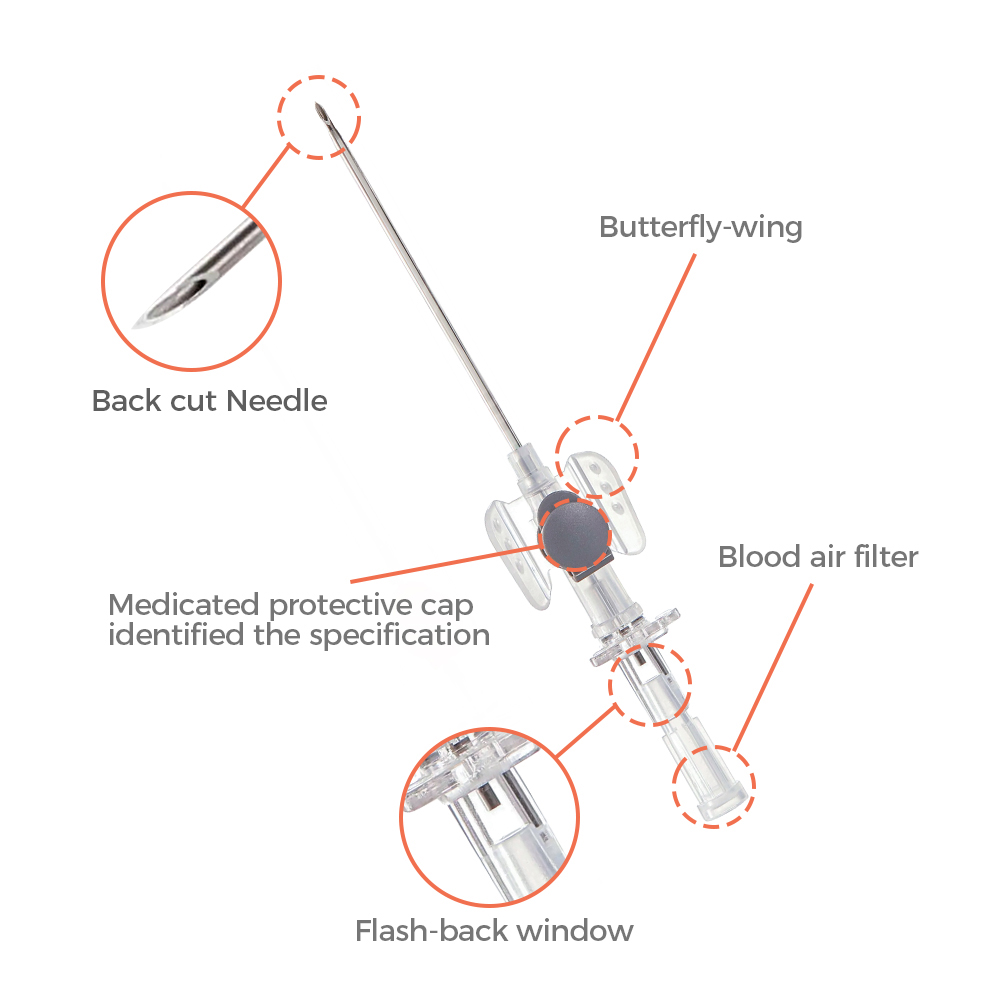

- Translucent, transparent catheter and needle seat design, easy to observe blood return.
- The catheter contains three beams of development line, which can be developed under X-ray.

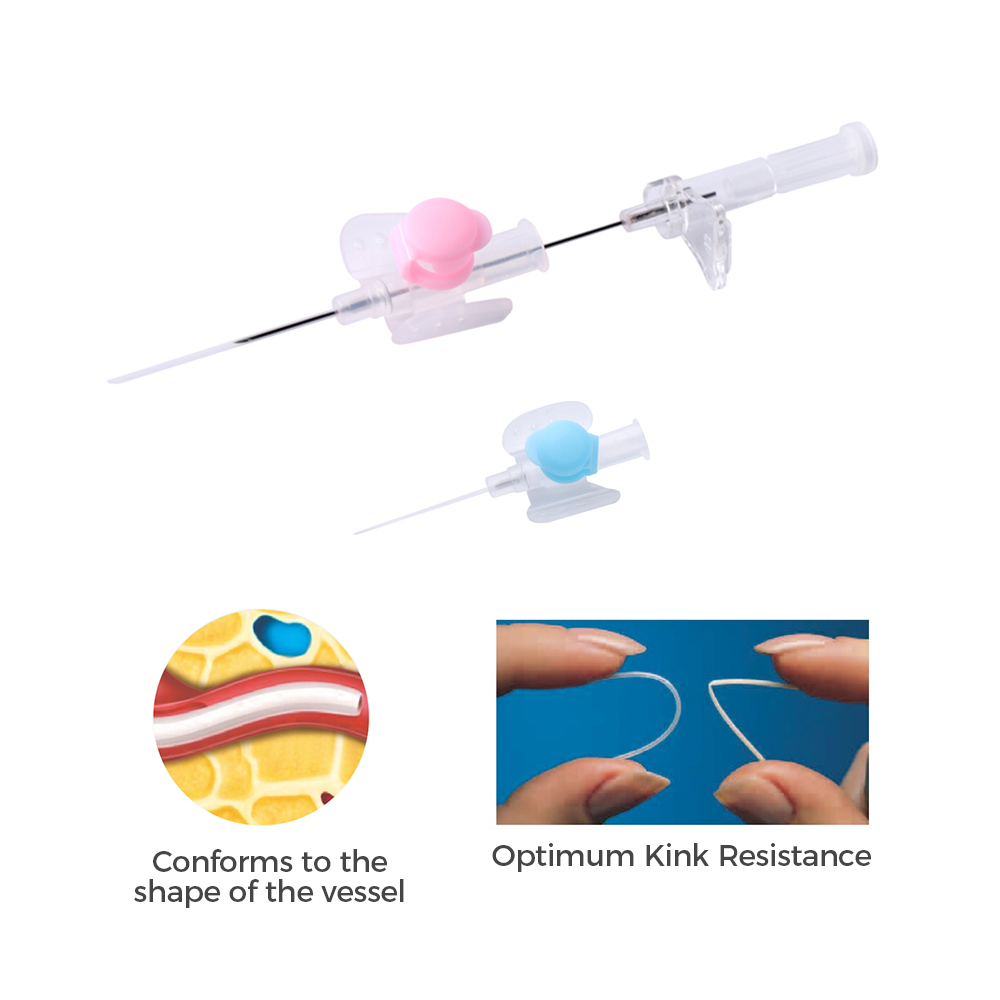

- The catheter is smooth and elastic, and has good flexibility, reducing the chance of catheter bending during indwelling, ensuring normal and stable infusion, and prolonging the indwelling time.
- The built-in blood air filter membrane can avoid direct contact between blood and air, and prevent unnecessary blood pollution.

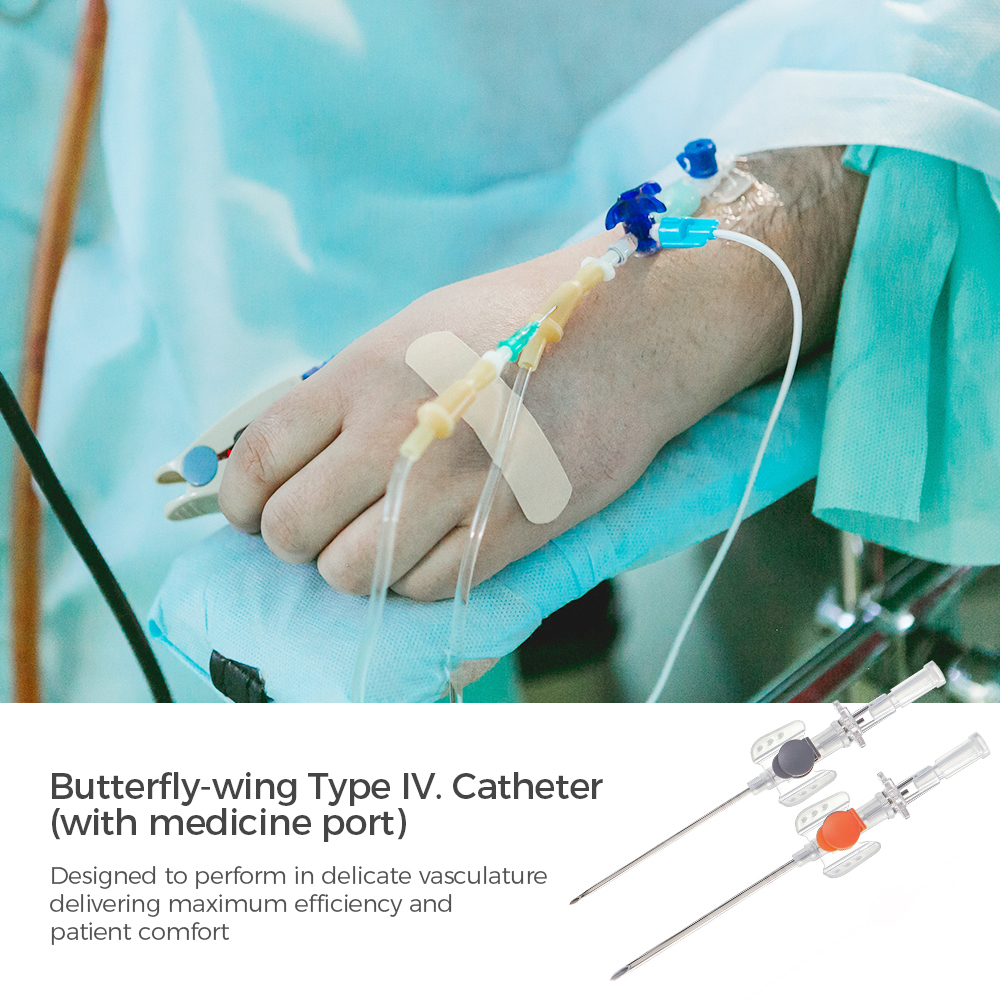

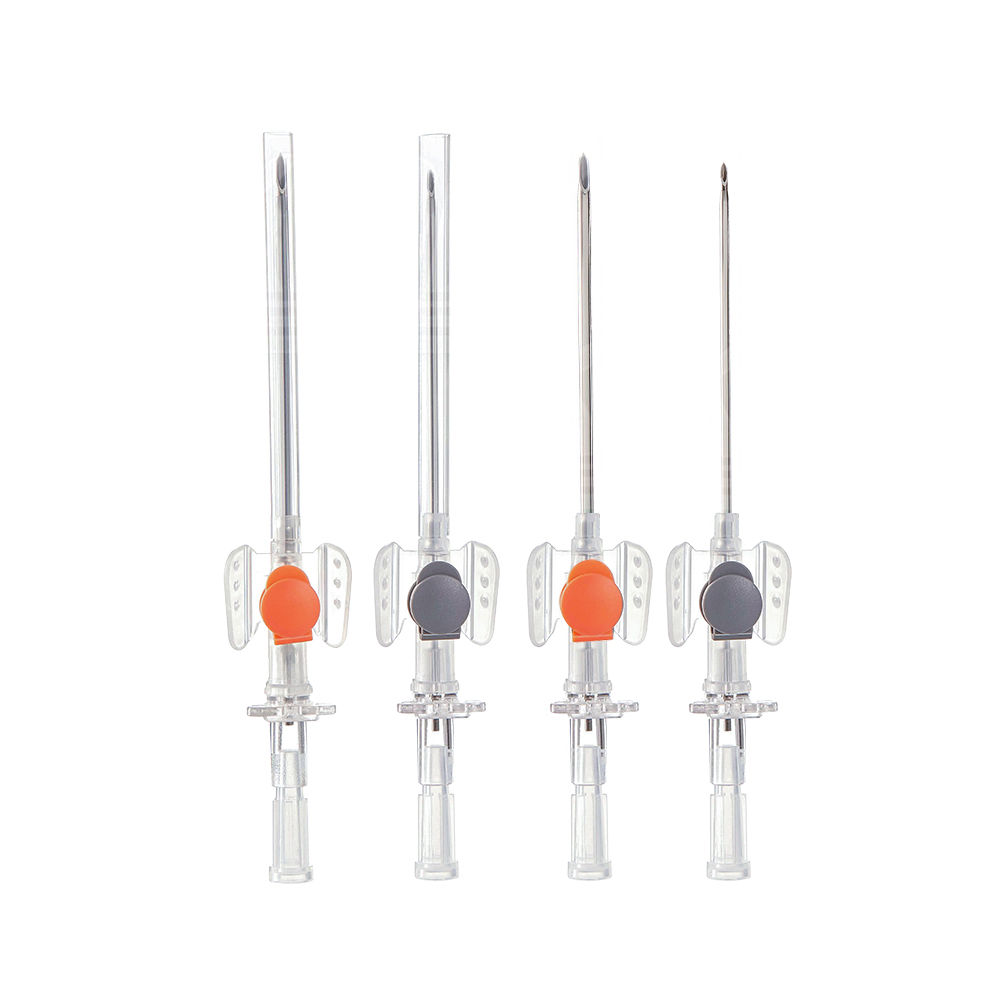

- Butterfly-wing Type IV. Catheter: The wings on both sides of the catheter base are designed for easier operation and fixation.
Product Highlights
| Key Benefits |
| For secure and painless IV access – hospitals, clinics, emergency care. Teflon/PU catheter – biocompatible, minimizes irritation and infection risk. Prolongs indwelling time – smooth, flexible. ISO color-coded hubs – easy gauge identification. CE, ISO13485 certified. |
Product Features
| Intended Use | The I.V. catheter is adopted by insert-blood- vessel-system, avoiding cross infection efficiently. Users are professional medical staff. |
| Structure and Composition | The catheter assembly by Protective cap, Peripheral catheters, Pressure sleeve, Catheters hub ,Dosing cap, Rubber stopper, Needle tube, Needle hub, air-outlet connector (Air filter+Air filter membrane). |
| Shelf Life | 5 years. |
| Certification and Quality Assurance | In compliance with REGULATION (EU) 2017/745 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL (CE Class: IIa) Manufacturing process is in compliance with ISO 13485 Quality System. |
Main Material
| Protective cap | PP |
| Peripheral catheter | FEP/PUR |
| Pressure sleeve | SUS 304 |
| Catheter hub | PP |
| Dosing cap | PP |
| Rubber stopper | Silicone rubber |
| Needle tube for puncture | SUS 304 |
| Needle hub | PC |
| Air filter | PP |
| Air filter membrane | PP fiber |
Specifications
| OD | Gauge | Color Code | General Specifications | Packing Quantity |
| 0.6 | 26 G | Purple | 26 G×3/4" | 1000 pcs/carton |
| 0.7 | 24 G | Yellow | 24 G×3/4" | 1000 pcs/carton |
| 0.9 | 22 G | Deep Blue | 22 G×1" | 1000 pcs/carton |
| 1.1 | 20 G | Pink | 20 G×1 1/4" | 1000 pcs/carton |
| 1.3 | 18 G | Dark Green | 18 G×1 3/4" | 1000 pcs/carton |
| 1.6 | 16 G | Medium Grey | 16 G×2" | 1000 pcs/carton |
