Huber Needle

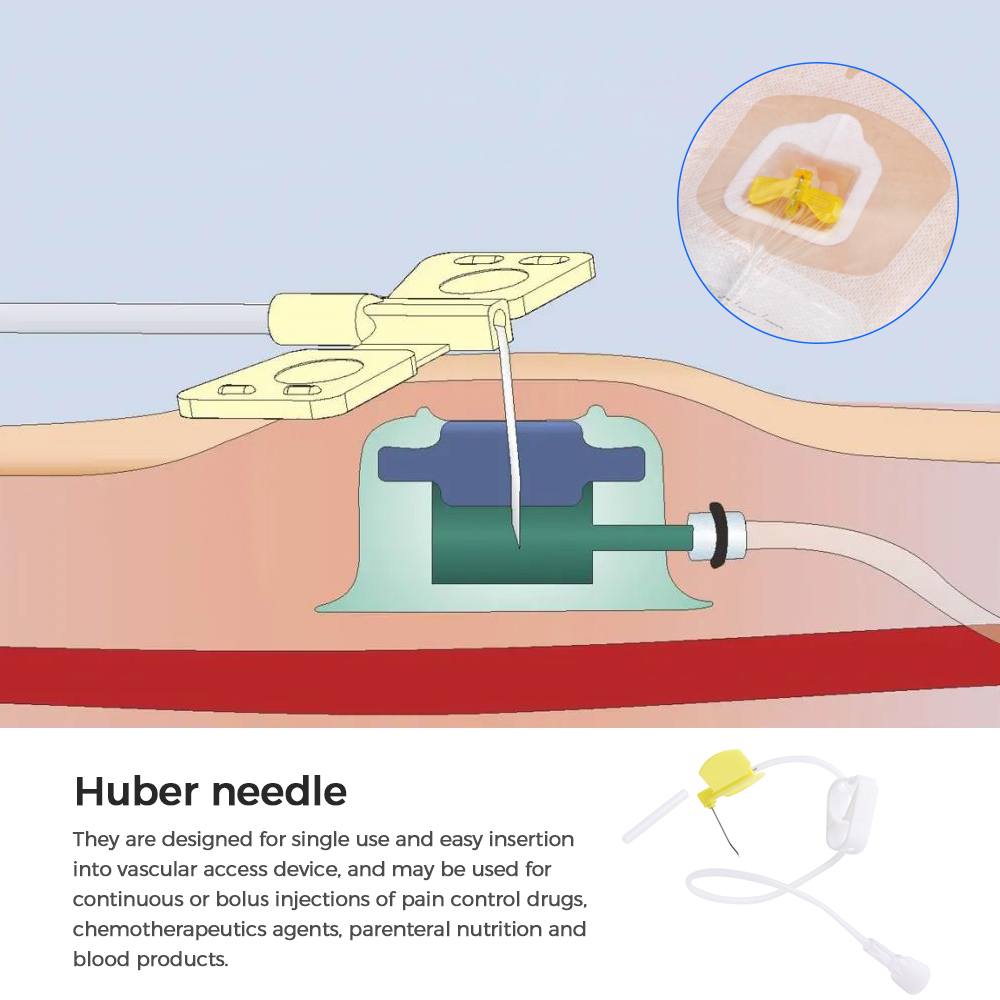

- The Huber Needle is applicable to embedded in the patients with subcutaneous, used for infusion.
- 18G, 19G, 20G, 21G, 22G, 23G, 24G, 25G, 26G, 27G.
- Sterile, non-pyrogenic, medical grade raw material.
- Pressure rated up to 325 psi.
Product Highlights
| Key Benefits |

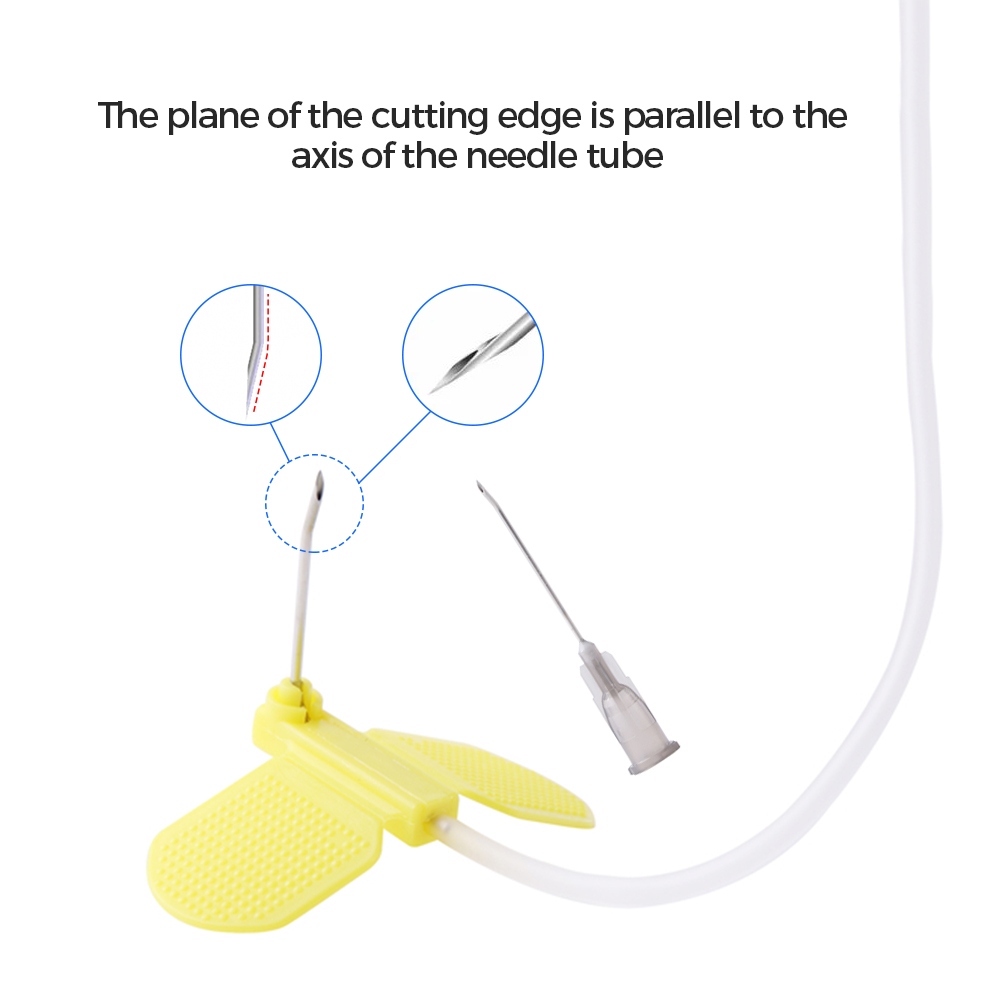

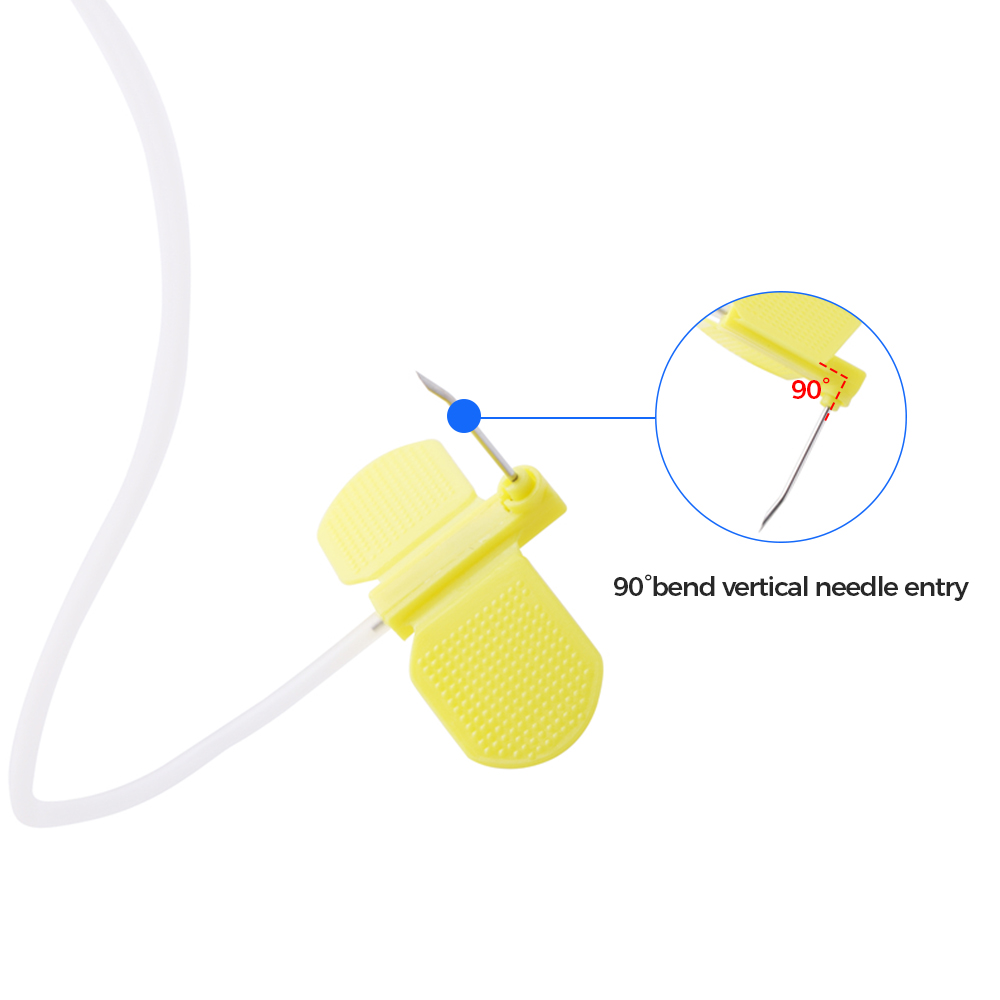

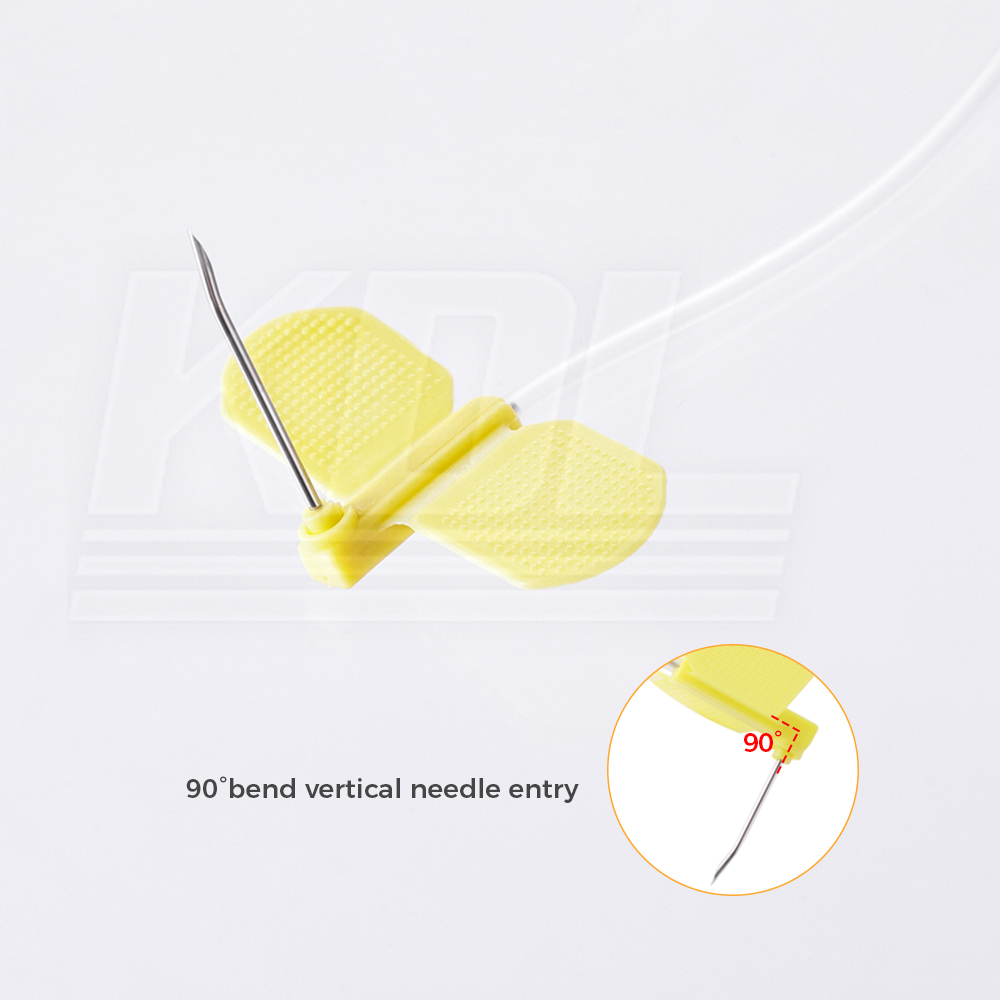

| For infusion or injection into patients with subcutaneous infusion port. Non-coring design – prevents silicone septum damage. Needle tip bent at angle – bevel edge parallel to needle tube axis. Reduces debris and avoids blood vessel embolism caused by falling debris. PP, PC, ABS, PVC, SUS304 materials. 5-year shelf life. |
Product Features

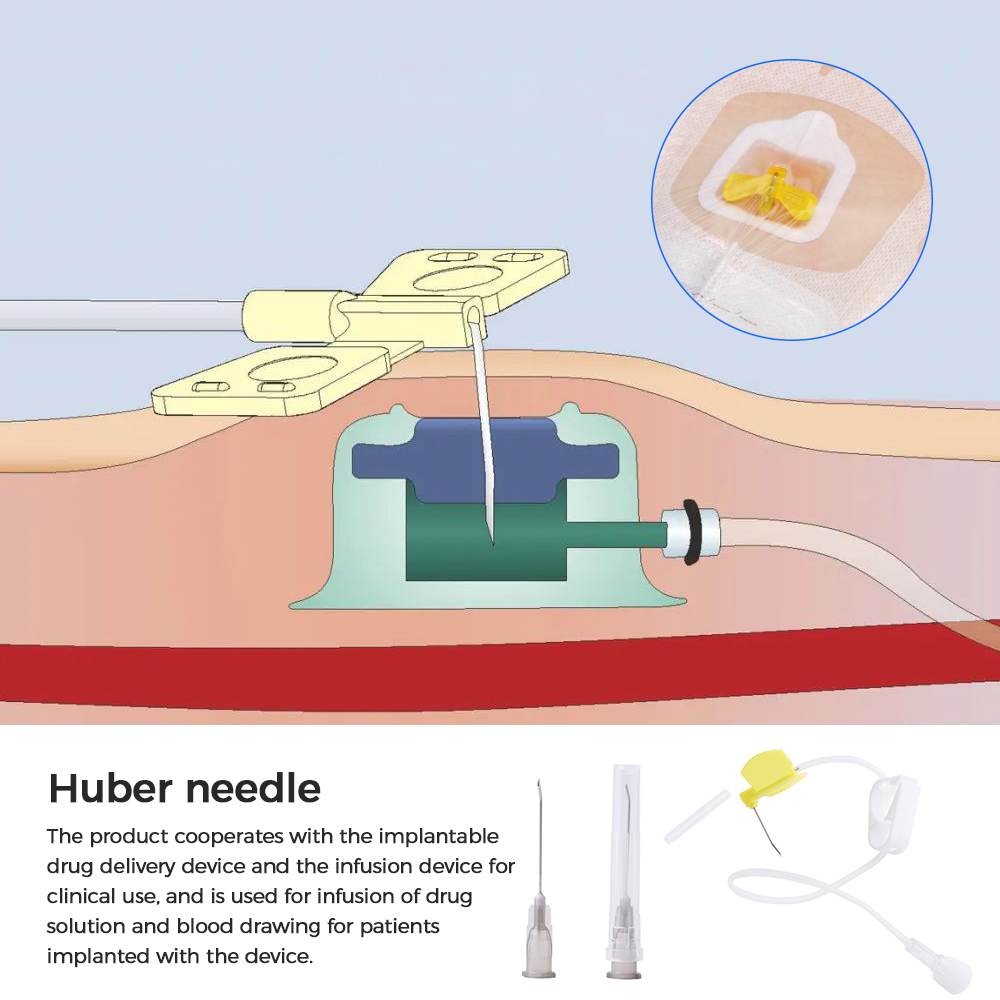

| Intended use | The Huber Needles are applicable to embedded in the patients with subcutaneous, used for infusion. It can avoid cross-infection between patients. So, in practice, operator must be trained medical professionals. |

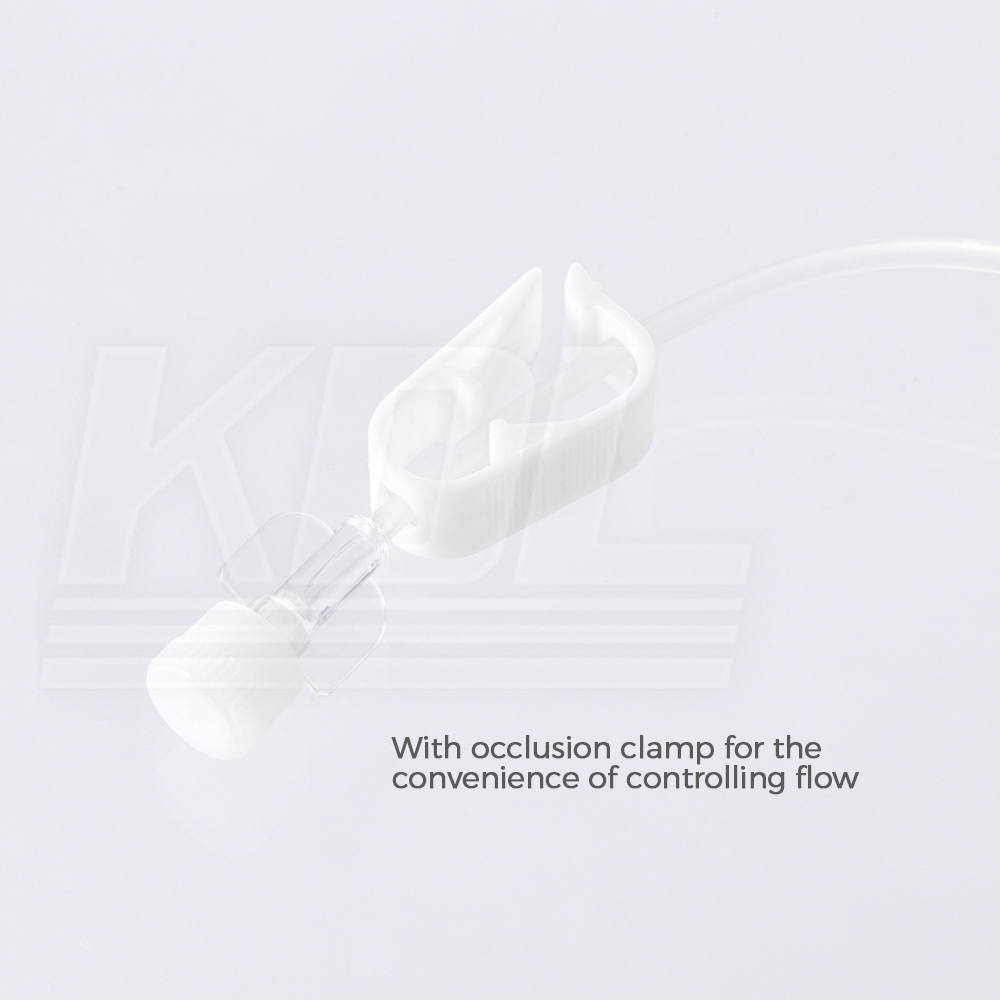

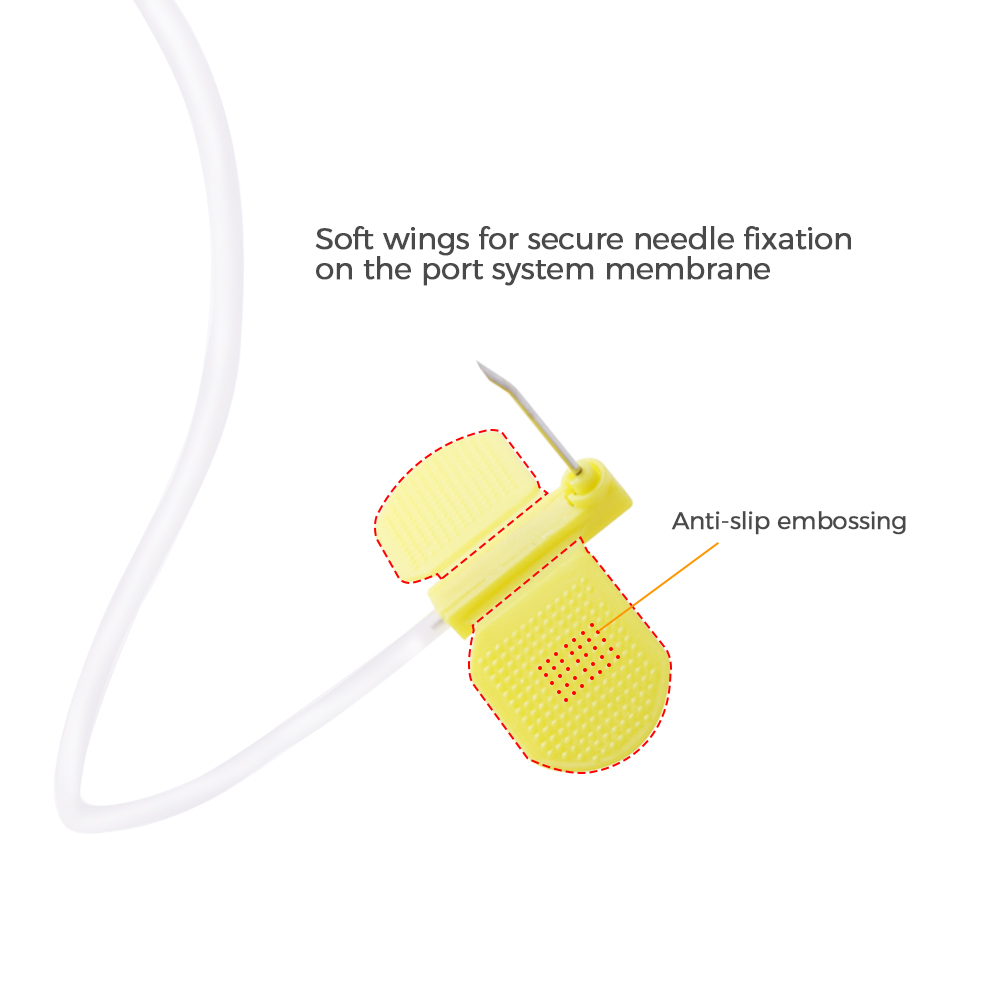

| Structure and composition | Huber needle is consisted of lock cover, female conical fitting, tubing, flow clip, tubing insert, Y-injection site/needle free connector, tubing, double-wing plate, needle handle, adhesive, needle tube, protective cap. |

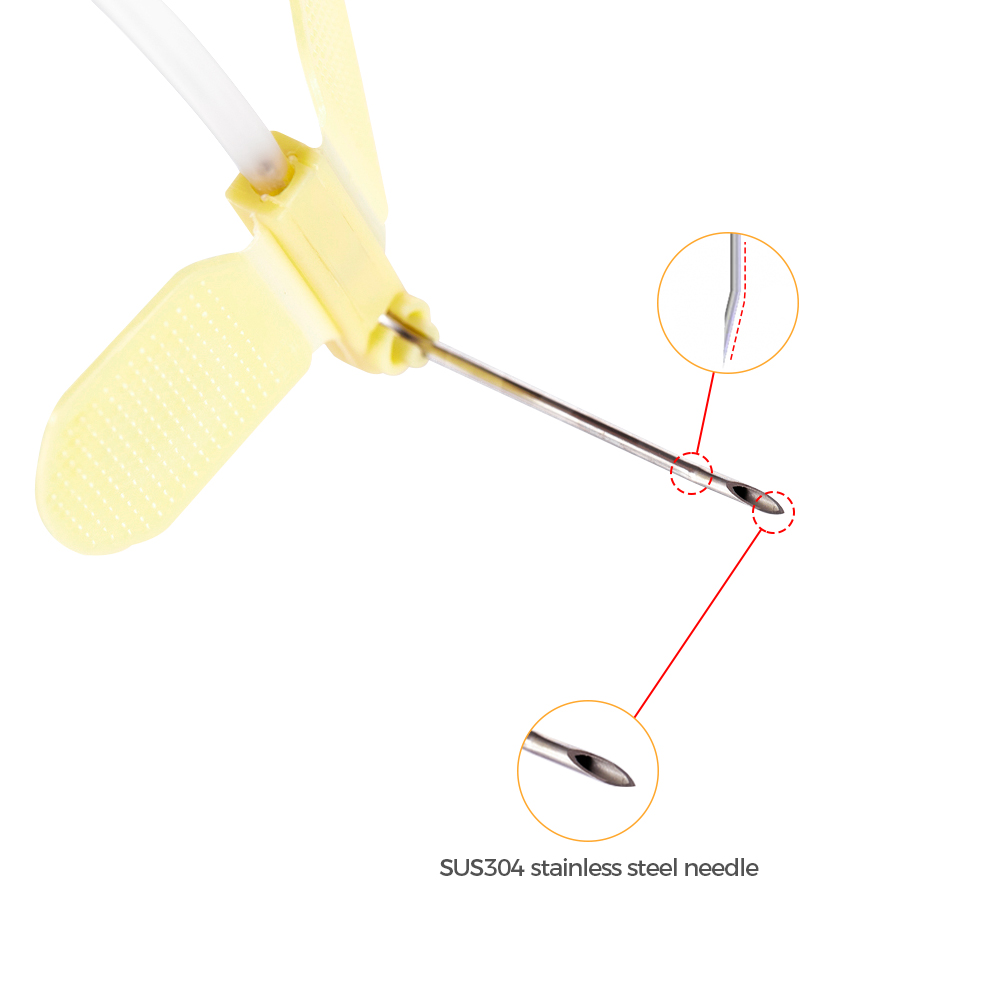

| Main Material | PP, ABS, SUS304 Stainless Steel Cannula, Silicone Oil, PC |
| Shelf life | 5 years |
| Certification and Quality Assurance | CE, ISO 13485. |
Specification
| OD (mm) | Gauge | Color Code |
|---|---|---|
| 0.6 | 23 G | Blue |
| 0.7 | 22 G | Black |
| 0.8 | 21 G | Green |
| 0.9 | 20 G | Yellow |
| 1.1 | 19 G | Cream |
