Hypodermic Needle
- Lure slip and Luer lock (18G, 19G, 20G, 21G, 22G, 23G, 24G, 25G, 26G, 27G, 28G, 29G, 30G).
- Sterile, non-toxic. Non-pyrogenic, single use only.
- CE approved and manufactured in accordance with ISO 13485.
Product Highlights
| Key Benefits |

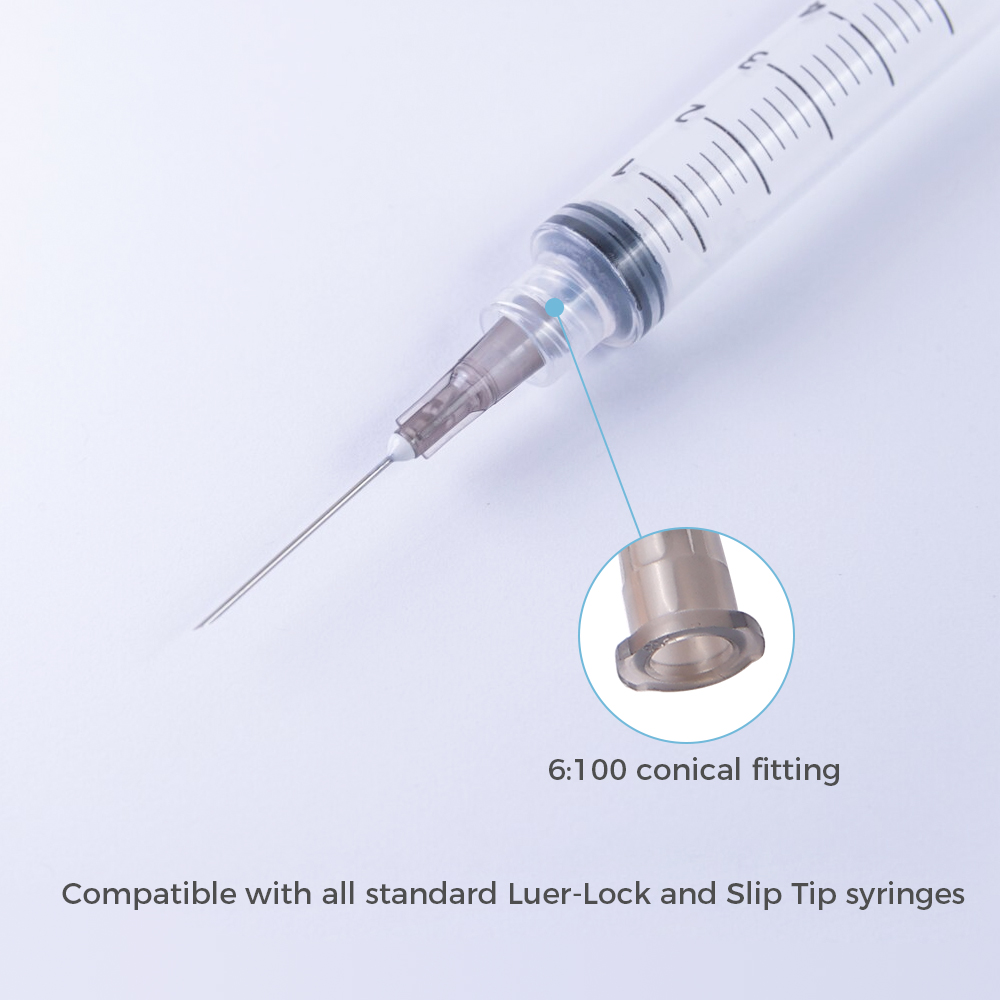

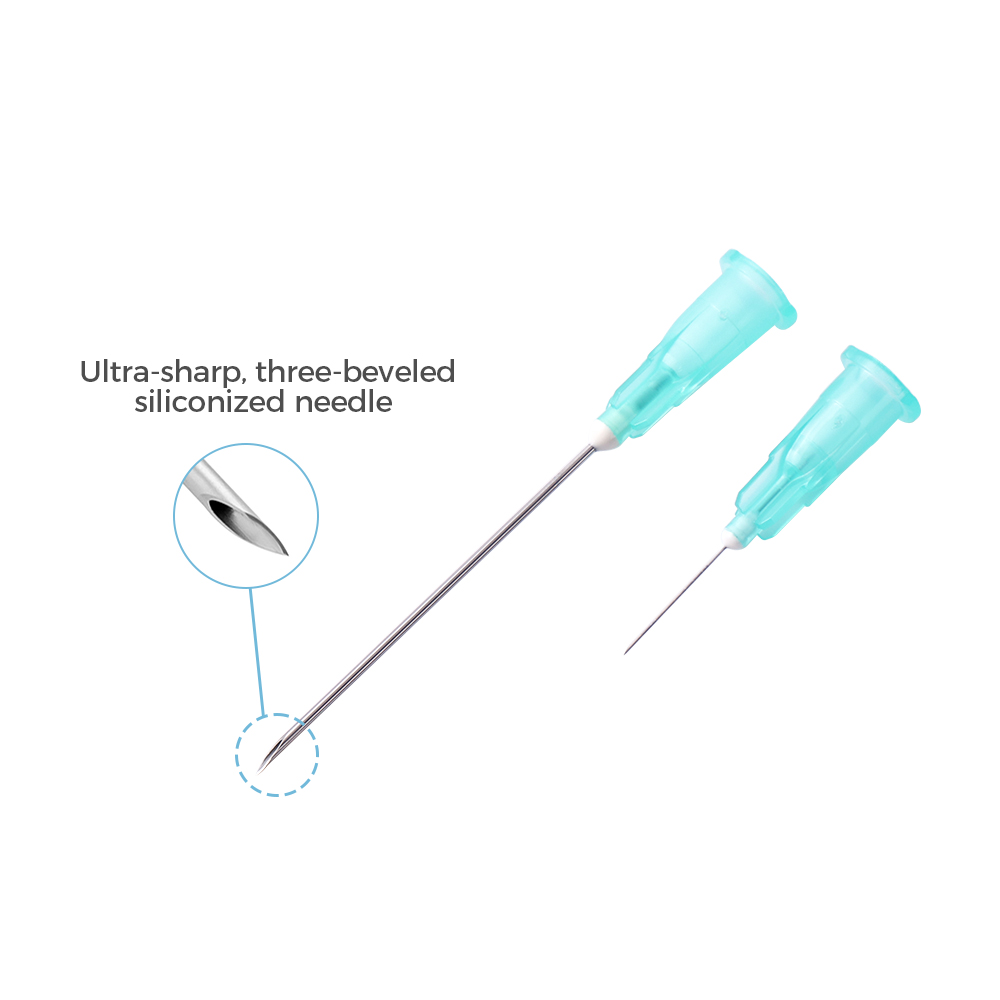

| SUS304 medical steel – full traceability per ASTM F899, batch certs available. Electro-chemically sharpened – penetration <0.5N at 25G (ISO 7864:2016). 14G–34G, 4mm–200mm, RW/TW/ETW, ISO color-coded hubs. Sterile, non-toxic, non-pyrogenic; EO/gamma sterilization. 10B+ annual capacity; 48–72h lead time for bulk orders. 4-bevel geometry – fast insertion, less pain. 6:100 conical fitting – accurate size, good compatibility. |
Model
| HPN02 |
Specification

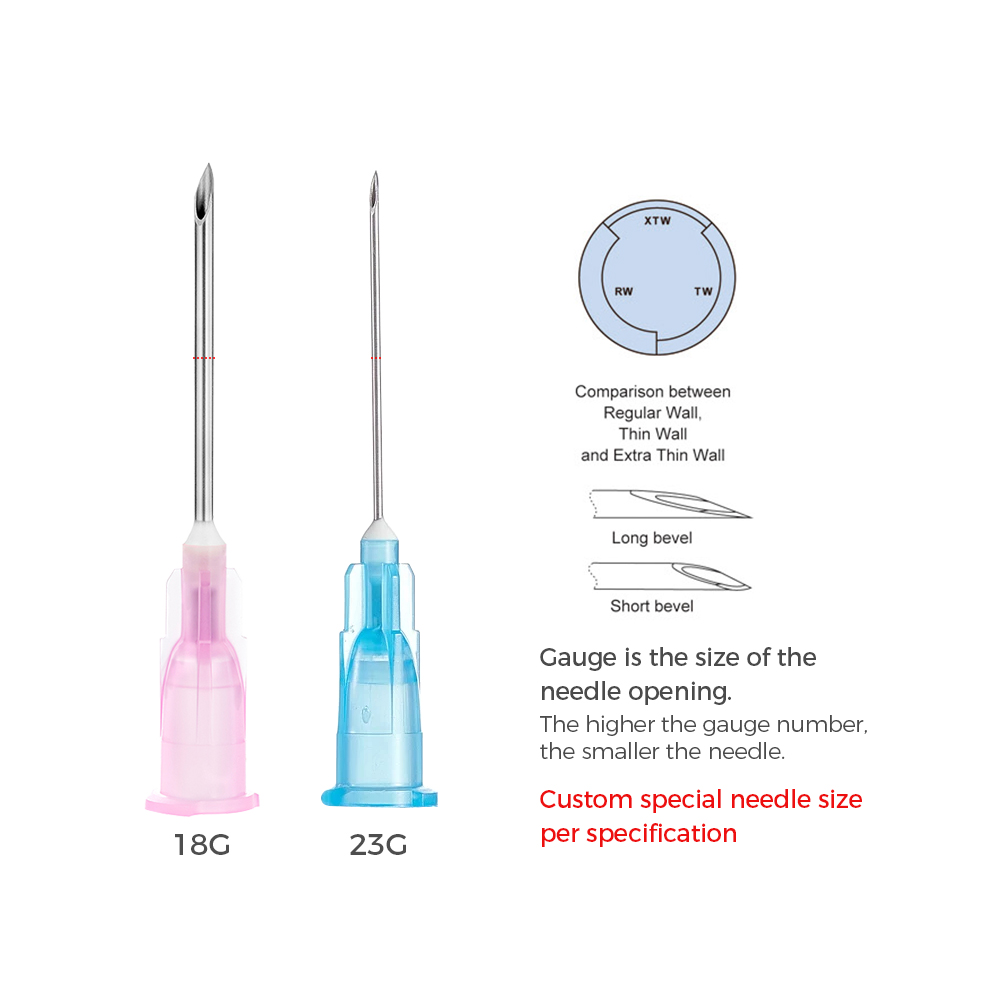

| OD | Gauge | Color Code | General Specification | QTY |
|---|---|---|---|---|
| 0.3 | 30G | Yellow | 0.3 X 13mm | 10000 pcs/carton |
| 0.33 | 29G | Red | 0.33×13mm | 10000 pcs/carton |
| 0.36 | 28G | Blue Green | 0.36×13mm | 10000 pcs/carton |
| 0.4 | 27G | Medium Grey | 0.4×13mm | 10000 pcs/carton |
| 0.45 | 26G | Brown | 0.45×16mm | 10000 pcs/carton |
| 0.5 | 25G | Orange | 0.5×16mm | 10000 pcs/carton |
| 0.55 | 24G | Medium Purple | 0.55×20mm | 10000 pcs/carton |
| 0.6 | 23G | Dark Blue | 0.6×25mm | 10000 pcs/carton |
| 0.7 | 22G | Black | 0.7×32mm | 10000 pcs/carton |
| 0.8 | 21G | Dark Green | 0.8×38mm | 10000 pcs/carton |
| 0.9 | 20G | Yellow | 0.9×38mm | 10000 pcs/carton |
| 1.1 | 19G | Cream | 1.1×38mm | 10000 pcs/carton |
| 1.2 | 18G | Pink | 1.2×38mm | 10000 pcs/carton |
Packing
| 100pcs | Box |
| 10000pcs | Carton |
| Carton Size | 450*440*455mm |
Product Features
| Intended use | This product is suitable for use when injecting or extracting medicinal fluids intradermally, subcutaneously, intramuscularly or intravenously into the human body. |
| Structure and Composition | The single-use sterile injection needle consists of a needle holder, a syringe, and a protective sleeve. The material used meets the requirements for medical use and is sterilized by ethylene oxide, making the product sterile and pyrogen-free. |
| Main Materials | Medical polypropylene, PP, SUS304, stainless steel tube, medical silicone oil. |
| Shelf Life | 5 years |
| Certification and Quality Assurance | FDA, CE, ISO13485. |
